6AG1640-0AA00-2AX1 Siemens SIMATIC TD400C Membrane Switch
6AG1640-0AA00-2AX1 Siemens SIMATIC TD400C Membrane Switch

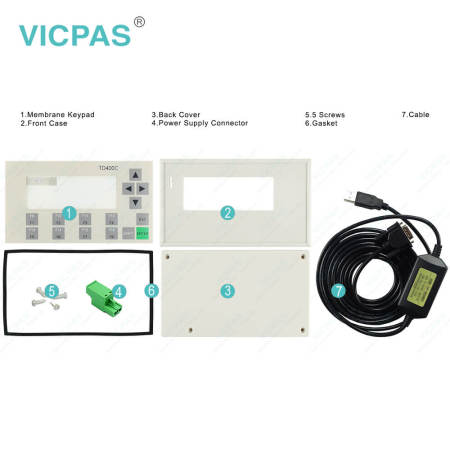

6AG1640-0AA00-2AX1 Siemens SIMATIC HMI TD400C Text display Membrane Keyboard, Power Supply Connector, Screws, Plastic Case Shell Repair Replacement
Order each part separately is available
6AG1640-0AA00-2AX1 Simens SIPLUS S7-200 TD400C -10...+60°C based on 6AV6640-0AA00-0AX1
The TD 400C Text Display is the optimal solution for all operator control and monitoring tasks of the SIMATIC S7-200. The customizable operator interface enables optimal adaptation of the device to the surroundings in which it isused.
It enables:
• Display of message texts.
• Intervention in the control program, e.g. setpoint changes.
• Setting of inputs and outputs, e.g. for switching a motor on and off.
Compatibility with the TD 100C, TD 200 and TD 200C Text Displays:The TD 400C Text Display is not compatible with existing Text Displays (different mounting dimensions, configurationcannot be adopted).
VICPAS supply 6AG1640-0AA00-2AX1 Siemens TD400C membrane switch, Screws, Power Supply Connector and Housing with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AG1640-0AA00-2AX1 Siemens TD400C HMI Parts.
| Part Number : | 6AG1640-0AA00-2AX1 |
| Number of lines: | 2 |
| size: | 3.7" |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens TD400C |
| Rated value (DC): | 24 V |
| Function keys,: | 15 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Resolution | 192 x 64 |
Related Siemens Simatic TD400C Part No. :
| Siemens TD400C | Description | Inventory status |
| 6AV6671-0AP00-0AX0 | TD400C FRONT FILM, BLANK | In Stock |
| 6AV6640-0AA00-0AX1 | TD 400C TEXTDISPLAY, 4 LINES | In Stock |
| 6AG1640-0AA00-2AX1 | SIPLUS_TD400C | In Stock |
| SIMATIC TD400C | Description | Inventory status |
Siemens TD400C series HMI Manuals PDF Download:
FAQ:
Question: How to program with 6AG1640-0AA00-2AX1 Siemens TD400C ?
Answer:The configuration data of the TD 400C is stored in the CPU of the S7-200. The message texts and theconfiguration parameters are created with the STEP 7-Micro/WIN V4 SP6 programming software. Additionalparameterization software is not required. The operating front design is configured with the Keypad Designer(component part of STEP 7-Micro/WIN V4 SP6).
Special data areas are reserved in the CPU of the S7-200 for data exchange with the TD 400C. The TD 400Caccesses each of the required functions of the CPU direct via these data areas. User-friendly parameterizationtakes place via a dedicated TD 400 Wizard in STEP 7-Micro/WIN V4 SP6.
Question: Which is the design of Siemens TD400C ?
Answer:The TD 400C is connected to the S7-200 using the supplied connecting cable. A separate power supply is not required.It is also possible to connect several TD 400Cs to one S7-200.
Question: What is the 6AG1640-0AA00-2AX1 Siemens TD400C mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
