6AV6651-1BA01-0AA0 Membrane keypad keyboard
|فئات||Simatic OP7 OP77A/B OP 73|
|Shipping||2-4 working days|
|Supply Parts||Keyboard and Case|
|ميناء||Guangzhou, Shenzhen, Hongkong|
|طريقة الدفع||Western Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union|

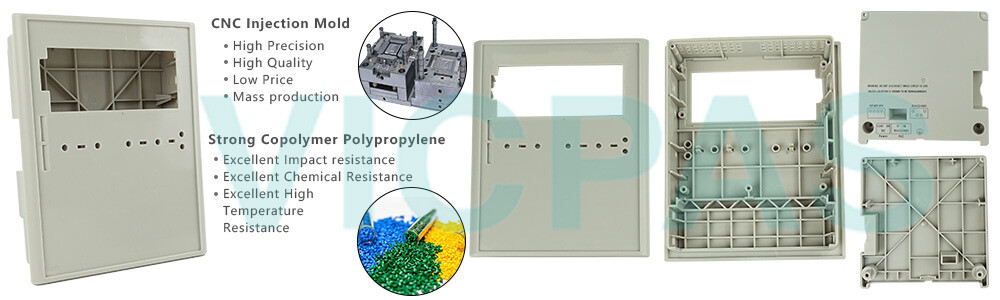

6AV6651-1BA01-0AA0 OP77A Siemens Operator Panel Keyboard keypad and Plastic Shell Case Repair Replacement

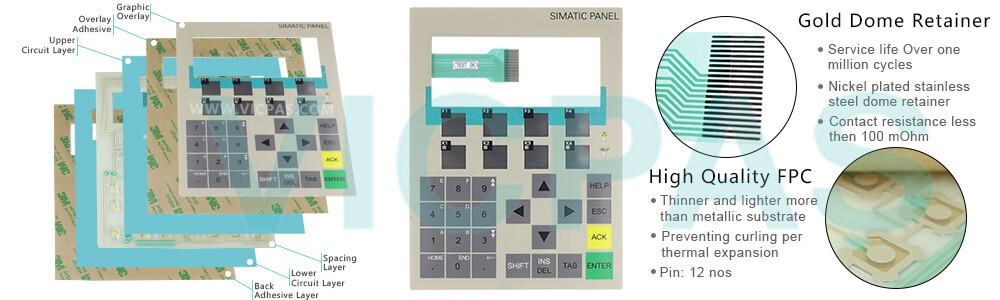

This Siemens OP77A 6AV6 651-1BA01-0AA0 operator panel Membrane Keypad and protective shell case are brand news and support 180 days VICPAS warrantys. The Keypad has 23 system keys, 8 freely-configurable and freely-inscribable function keys (4 with LEDs), display numeric and alphanumeric input facilities. The ratio of this plastic shell to the OP77B Siemens case is 1:1, identical and 100% compatible.
The Siemens OP77A 6AV6651-1BA01-0AA0 Operator Panel Functions
Graphics can be used as icons instead of text to "label" function keys or buttons. They can also be used as simple on-screen graphics.
Predefined texts for labeling function keys, process images and process values in any character size
Bars are used for the graphical display of dynamic values
OP77A Display selection from the PLC supports operator prompting from the PLC
Language selection during runtime 5 online languages, 32 configuration languages incl.
Asian and Cyrillic character sets. Language-dependent texts and graphics
User administration (security) according to the requirements of the various sectors
Authentication with user ID and password and User-group-specific rights
The 6AV6651-1BA01-0AA0 Signaling system freely definable message classes (e.g., status/fault messages) for definition of acknowledgment response and display of message events. The user can scans the message history by recipe management or help texts. OP77A backup and restoration of the configuration, operating system, data records and firmware on a PC using ProSave Configuration download/upload using MPI/PROFIBUS DP and serially by using RS 485 Individual contrast settings No batteries are necessary
The table below describes the parameters of the Siemens Simatic OP77A 6AV6651-1BA01-0AA0 Operator Panel keypad and case.
|Part Number :||6AV6 651-1BA01-0AA0|
|Product Line:||Siemens Simatic OP77a|
|Product's Size:||4.5 inches|
|Warranty:||180 Days Warranty|
|Material:||Polyester or Polycarbonate|
|Rated Voltage:||DC 5V 1mA|
|Conductive Trace:||Silver or Copper|
|Life Cycle:||5 Million Cycles(up to)|
Related Siemens Simatic OP77 Part No. :
|Siemens OP77a OP77b HMI||Description||Inventory status|
|6AV6641-0CA01-0AX0||SIMATIC OPERATOR PANEL OP77B Keypad and Case Shell||In Stock|
|6AV6641-0CA01-0AX1||OPERATOR PANEL OP77B (2C) Keyboard and Plastic Case Shell||In Stock|
|6AV6641-0BA11-0AX1||SIMATIC OPERATOR PANEL OP77A Keypad and Case Shell Cover||In Stock|
|6AV6641-0BA11-0AX0||Siemens OP77a Membrane Keypad and Front Case Shell||Available Now|
|6AG1641-0CA01-4AX1||SIPLUS HMI OP77B Membrane Keyboard and Case Shell||In Stock|
|6AG1641-0CA01-4AX0||SIPLUS OP77B Siemens Keypad and Case Shell Cover||In Stock|
|6AV6651-1CA01-0AA0||Starter Package OP77A OP 77A Panel Keypad and Case||In Stock|
|6AV6651-1BA01-0AA0||Starter Package OP77A OP 77B Panel Keyboard and Plastic Case Shell||Available Now|
|Simatic OP77 Operator Panel||Description||Inventory status|
Complete view of all series Siemens HMI Parts
Siemens OP77a Manual PDF Download:
Question: What software does Siemens OP77A 6AV6651-1BA01-0AA0 operator panels use?
Answer: It is SIMATIC WinCC Flexible software, that is an integrated family of tools for configuring the Siemens 6AV6651-1BA01-0AA0 OP77A operator panels operator units. The uniformity of configuration software reduces training, maintenance and updating requirements . More details download the PDF Siemens Software WinCC-flexible 2008
Question: How to Backup and restore a program on Siemens OP77A 6AV6651-1BA01-0AA0 Operator panel?
Answer: This feature allow to upload only the compiled file. Let's call an image file downloaded to the Panel. Image file executed only on the panel and you can restoreit using Prosave software to the same panel again or another panel with the same MLFB. You will not be able to modify any thing in this file. And also you do not need to buy a licenced software (WinCC flexible), you can backup and restore using Prosave software and it is a free ware and can be downloaded from siemens Website.
Then follow the instructions of Siemens technical support: Siemens Simatic OP77A OP77B Backup
Question: How do you back transfer the projects of Siemens OP77A 6AV6651-1BA01-0AA0 Simatic Panel?
Answer:Back transfer of the project: This feature allow to have a copy of the WinCC project from Simatic Panel. In this case, you can open this project from WinCC flexible and modify if you want.
Then follow the instructions of Siemens technical support: How do you back transfer the projects of an operator panel and what should you watch out for?
Question: What is the difference between OP77A vs OP77B?
Answer: The functions of these two products are the same, but his internal configuration is partially different. The Siemens OP77A version has 256 KB memory and the Simatic OP77b version 1MB + optional MMC. The A-version definitely has an RS485 interface. Aad The B version also has USB, RS232 and RS422
Question: What is the Siemens Simatic OP77A 6AV6651-1BA01-0AA0 Operator Panel price of membrane keypad and case?
Answer: Submit a fast quote, send VICPAS an email for best price.
